Bâtiment double de 1730m² dans un port en Afrique 10%
Bâtiment double de 1730m² dans un port en Afrique avec dimensions indiquées 10%
Bâtiment double de 1730m² dans un port en Afrique
Bâtiment double de 1730m² dans un port en Afrique avec dimensions indiquées

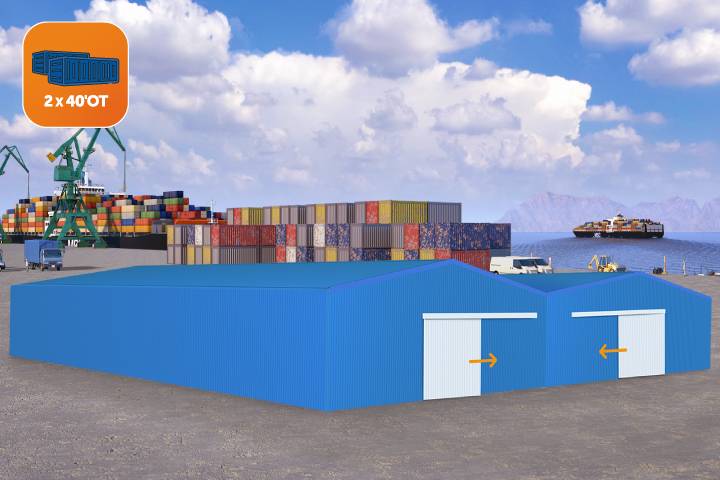

Building in kit closed 1 730m² with sliding doors

Request a free quote

Building details

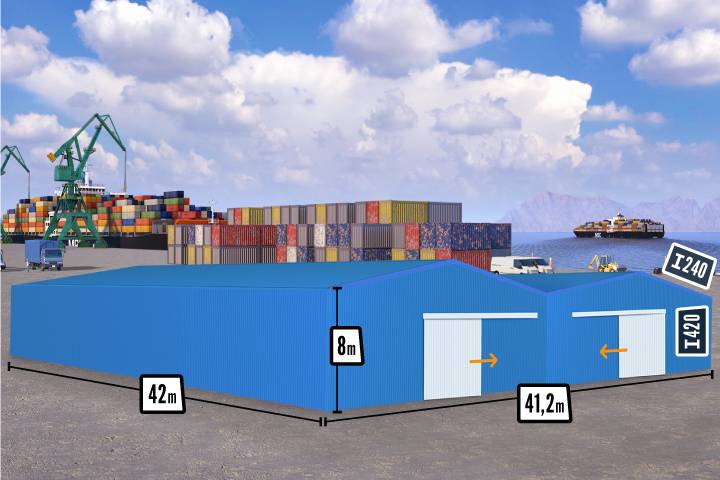

Shape and sizes

Opening: Closed
Building area: 1 730m2
Type of slope: Twin double slope (8%)
Width: 41.2m
Length: 42m
Height: 8m
Rafter section: Ⅰ 240mm
Post section: Ⅰ 420mm
Purlins: C160mm galvanized
Gutters Galvanized central gutter with high drainage rate


Type of roofing: 0.50 lacquered sheet metal
Type of cladding: 0.50mm lacquered sheet metal
Ridge: Flat & large
Side Bracing: Included
Bolts and fasteners: Included


Specificity 1: Double-sloped building of 1730m² with a large width and a single row of interior posts allowing a comfortable surface
Specificity 2: 2 sliding doors with monorail and floor guide, lacquered sheet metal cladding
Specificity 3: Delivered in 2 containers 40'OT


Your logistics operations require a warehouse adapted to your needs. Our kit building equipped with two sliding doors, with a surface area of more than 1700m², can be adapted to your logistics operations. It offers a vast space that can be fitted out for the installation of a processing line, a production unit or a storage area. Designed with a height of 8m to offer more possibilities and adapt to your logistic organization. It will be delivered in 2 x 40'OT containers, which will facilitate its transportation to your activity area. Its great ease of assembly will allow you to assemble it very simply everywhere in Africa.

Highlights of the closed building with sliding doors 41,2x42x8m :

Robustness and resistance

  • PRS structure in High Resistance Steel shot-blasted with anti-rust paint
  • Covering sheet metal 1st choice profile 5 waves wide with overhangs of sheet metal of 20cm on the long sides, consult our color chart
  • Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on 4 sides up to the ground or from a certain level of the ground (including corner joints)
  • Thanks to the shot blasting and the application of an anti-rust paint coat, your building is designed to last over time
  • 8m height ideal for storage and warehousing
  • Central welded channel to ensure optimal water drainage and protect your double building from the elements
  • 2 sliding doors in kit of dimensions 6m (W) x 5m (H) with galvanized monorail and guide on the ground, cladding in lacquered sheet metal laid in gable.
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to the EN1090 standard, Design and Conception Made in Luxembourg
  • High quality and low prices characterize our steel constructions. For your logistic activity, take advantage of a solid and resistant hangar to secure your goods and materials from weather conditions for a very long time

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in only 2 years
  • A high quality, sustainable building calculated by our in-house design experts

We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • More than 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with its installation plans for straightforward assembly
  • Delivery in two open container !
This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual

Available options

Hot‒dip galvanization of the structure
Roofing in 60/100th ALU lacquered sheets (natural or colored tint)
Roofing in 70/100th ALU lacquered sheets (natural or colored tint)
Roofing in 100mm fiberglass double skin
Roofing in 100mm fiberglass + rockwool and mesh
Notched ridge
Insulated sandwich panel cladding to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Corner connectors
Ventilation grids
Air extractors
10% translucent sheets on the roof
Service door
Double track sliding door
Motorized metal curtain
Other options available for the openings Other options available for openings, please consult us. ..
