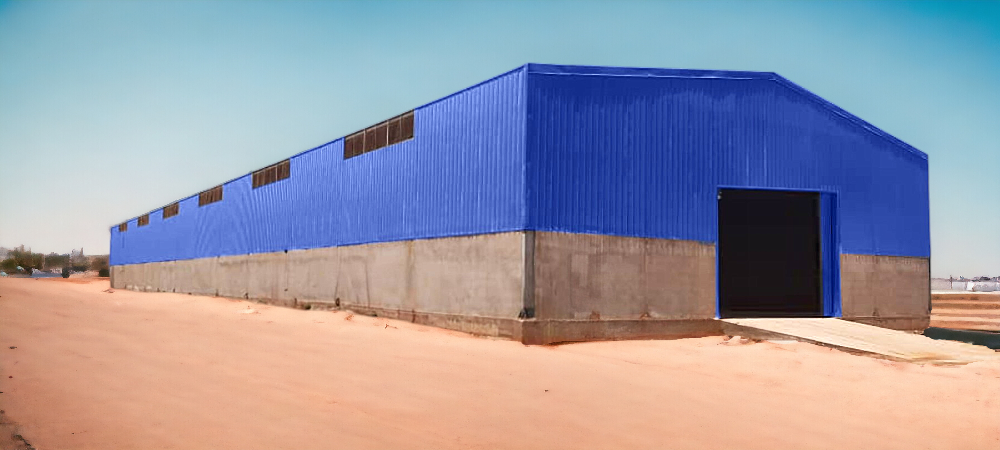

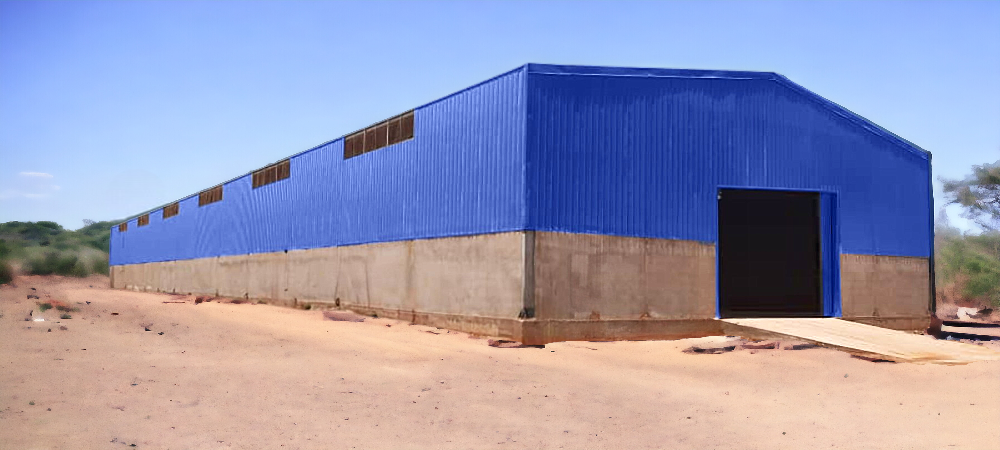

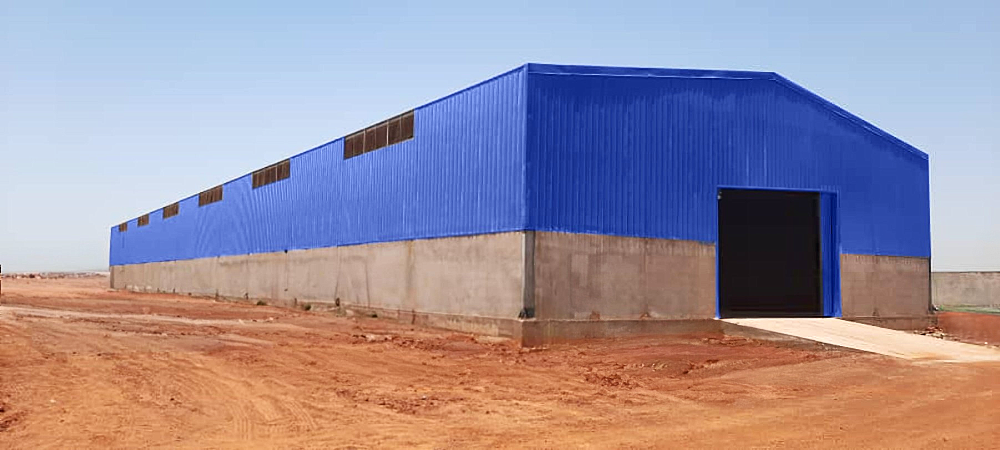

Cladded kit building 1 950m² with sliding door

Request a free quote

Building details

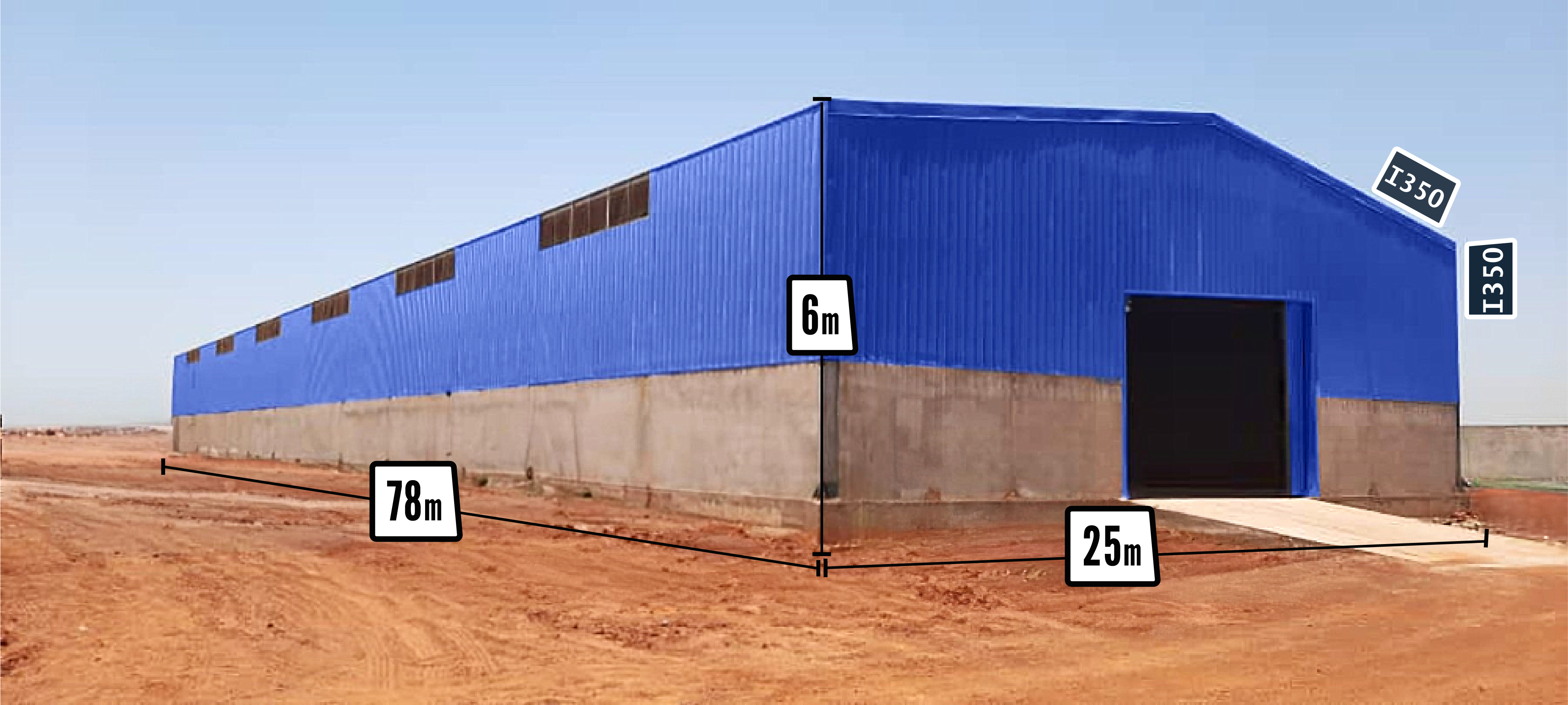

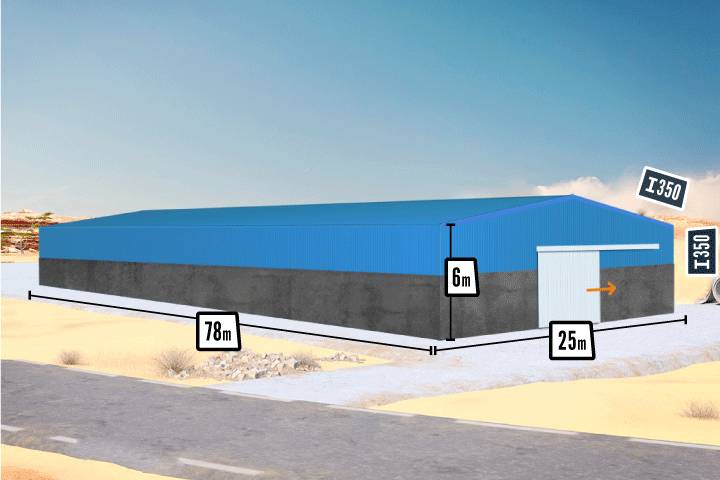

Shape and sizes

Opening : Closed
Building area : 1 950m2
Type of slope : Double slope (8%)
Width : 25m
Length : 78m
Height : 6m
Rafter section : Ⅰ 350mm
Post section : Ⅰ 350mm
Purlins : C160mm galvanized
Weight : 46 309kg

Covering

Type of roofing : 0.50 lacquered sheet metal
Type of cladding : 0.50mm lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1: Over 2,000m² enclosed area, ideal for setting up a production site or a processing and packaging unit with a large storage space
Specificity 2: Requires only two 40' open top containers for transport
Specificity 3: One sliding door 5x5m

Description

A cladded kit building of 1950m² with sliding door, as the ideal solution for setting up a production unit, a processing or packaging facility. Our closed buildings in kit shape for the agri-food sector are designed to adapt to the specific needs of your activity for storage and production space. Designed for easy installation this building in kit shape requires only 2 40' open-top containers to be delivered to you
Reference: IA2

Robustness and resistance

  • Structure PRS High Resistance Steel shot-blasted with anti-rust paint
  • Sheet cover 1st choice profile 5 wide waves with 20cm overhangs on the long sides, check our color chart
  • Height of 8m ideal for storage
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our steel constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.
  • Cladding on the 4 sides with corners fittings included
  • One 5x5m sliding door

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly

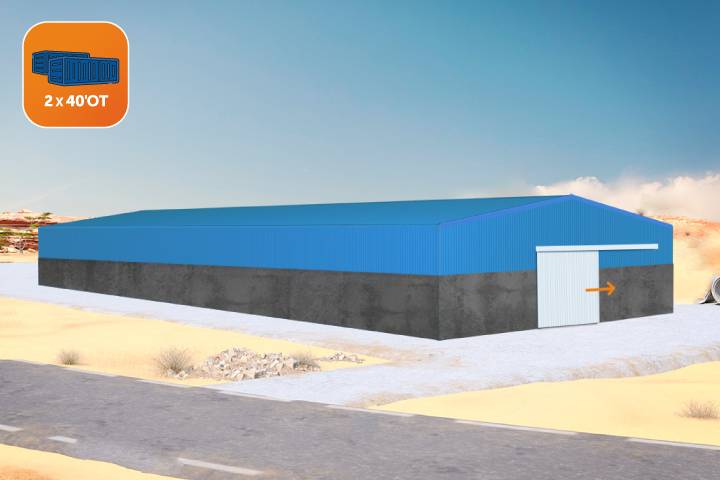

  • Delivery in two 40' open-top containers!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Hot‒dip galvanization of the structure
Covering in 70/100th STEEL lacquered sheets
Covering in lacquered sheet 70/100th ALU
Covering in lacquered sheets 60/100th STEEL
Covering in lacquered sheets 60/100th ALU
Insulated sandwich panel roofing (from 40mm to 120mm thick)
10 % of translucent sheets in roofing
10 % of sandwich panels
Skylights Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Galvanized gutters to be welded on the long external sides, high evacuation rate
Accessories: closures, notched ridge cap
Ventilation grids
Air extractors
Service door
Windows
Other options available for the openings, consult us...
