Closed kit building 1 260m²

Request a free quote

Building details

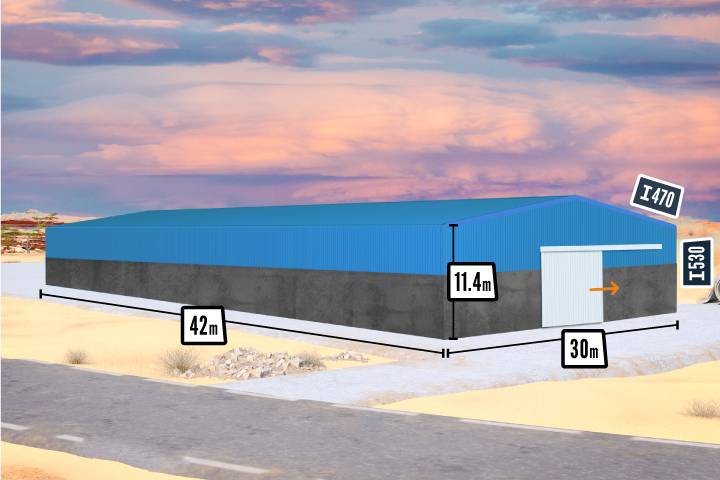

Shape and sizes

Building area : 1,260.00m2
Type of slope : Double slope (8%)
Width : 30m
Length : 42m
Height: 11.4m
Rafter section : Ⅰ 470mm
Post section : Ⅰ 530mm
Purlins : C160mm galvanized
Gutters : Galvanized central gutter with high drainage rate
Weight: 46,208.00kg

Covering

Type of roofing : 0.50 lacquered sheet metal
Type of cladding : 0.50mm lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : 11.40m height, allowing rack storage at a great height, or the installation of machines with an important hight
Spécificité 2 : Large width with no posts inside the building allowing easy layout on a wide open surface area
Specificity 3 : The building's dimensions allow you to plan in height an office area with an overview of the rest of the building (either in metal structure, as an additional option; or in concrete)

Description

Need an enclosed building to house your business? Choose our 1260m² building closed in steel tray sheets. With no interior post, you have the possibility of fitting out the entire surface covered by the building according to your needs (30x42m). Multipurpose industrial building, ideal for factories, production lines, offices, stores, showrooms, etc. Its generous height (10.40m) is perfect for use in racks. Our building, designed for easy mounting, will only require two 40' open-top containers to be delivered to you.
Reference: AUI4

Robustness and resistance

  • Structure PRS High Resistance Steel
  • Sheet cover 1st choice profile 5 wide waves with 20cm overhangs on the long sides, check our color chart
  • Height of 8m ideal for storage
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our steel constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • Your building is insurable and eligible for cover in the event of a claim, provided that it is installed according to the rules.
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly
  • Delivery in two 40' open-top containers!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Covering in lacquered sheets 70/100th STEEL Covering in lacquered sheet 70/100th ALU Covering in lacquered sheets 60/100th STEEL Covering in lacquered sheets 60/100th ALU Insulated sandwich panel roofing (from 40mm to 120mm thick) Accessories: closures, notched ridge cap Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick) Accessories: corner joints, dripstops, roofing Lacquered sheet metal cladding 50/100th, 1st choice, profile 5 wide waves, on 4 sides from 3m from the ground, including corner joints Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included) Galvanized gutters panels to be welded on the long external sides, high evacuation rate Skylights Ventilation grids. Air extractors. 10 % of translucent sheets in roofing. 10 % of translucent sandwich panels Service door Windows Other options available for the openings, consult us...
