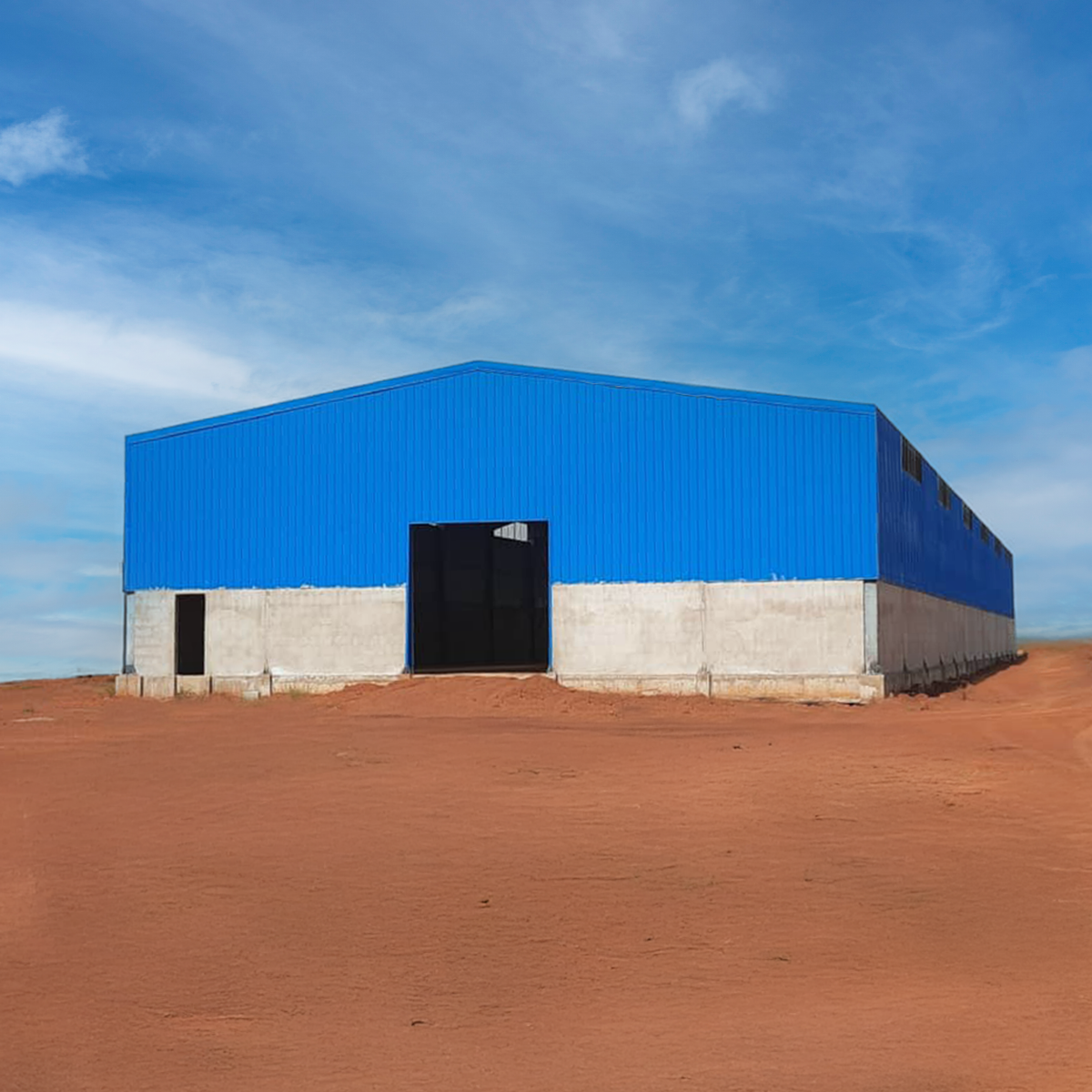

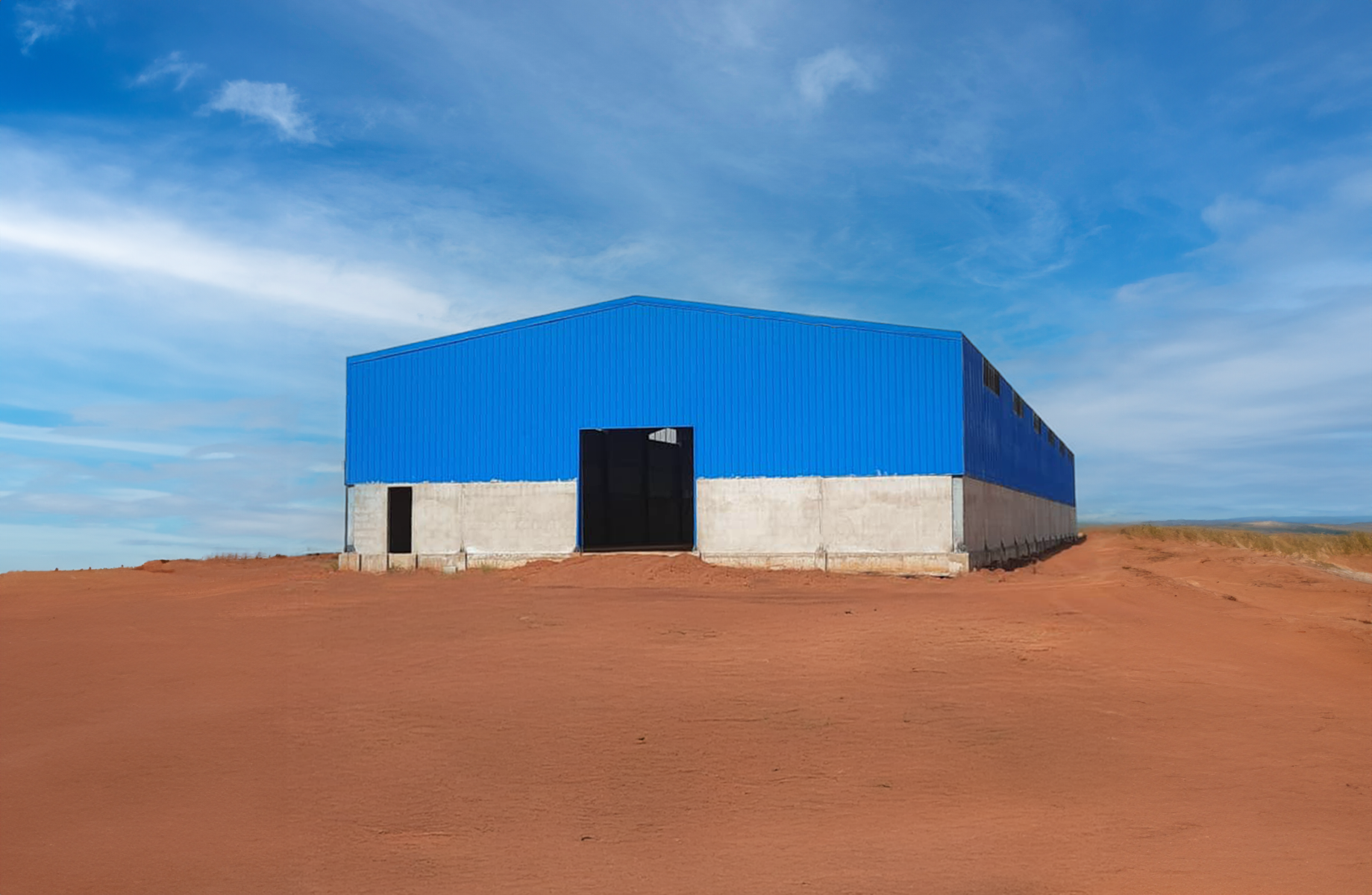

Bâtiment en kit de 1800m² sans poteaux intérieurs

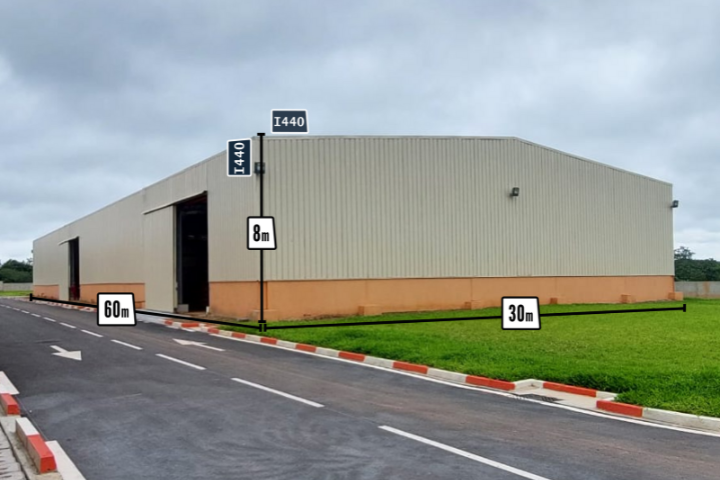

Dimensions bâtiment en kit de 1800m²
Bâtiment en kit de 1800m² sans poteaux intérieurs
Dimensions bâtiment en kit de 1800m²

Closed kit building 1 800m²

Request a free quote

Building details

Shape and sizes

Opening : Closed
Building area : 1 800m2
Type of slope : Double slope (8%)
Width : 30m
Length : 60m
Height : 8m
Rafter section : Ⅰ 440mm
Post section : Ⅰ 440mm
Purlins : C160mm galvanized
Weight : 51 315kg

Covering

Type of roofing : 0.50 lacquered sheet metal
Type of cladding : 0.50mm lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1: Large width without any posts inside the building allowing easy layout
Specificity 2: These dimensions allow you to plan in height (either in metal structure, as an additional option, or in concrete) an office area with an overview of the rest of the building
Specificity 3: Requires two 40' open top containers for transport

Description

Set up your logistics store thanks to an easy-to-assemble 1800m² kit building that adapts to your needs in terms of space for logistic operations. A closed building designed by our experts to offer a generous width without any posts inside the building. Its height of 8m allows you to set up an office space with an additional optional metal structure or the use of concrete construction. This building only requires 2 40' open-top containers to be delivered to you.

Robustness and resistance

  • Structure PRS High Resistance Steel shot-blasted with anti-rust paint
  • Sheet cover 1st choice profile 5 wide waves with 20cm overhangs on the long sides, check our color chart
  • Height of 8m ideal for storage
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our steel constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly

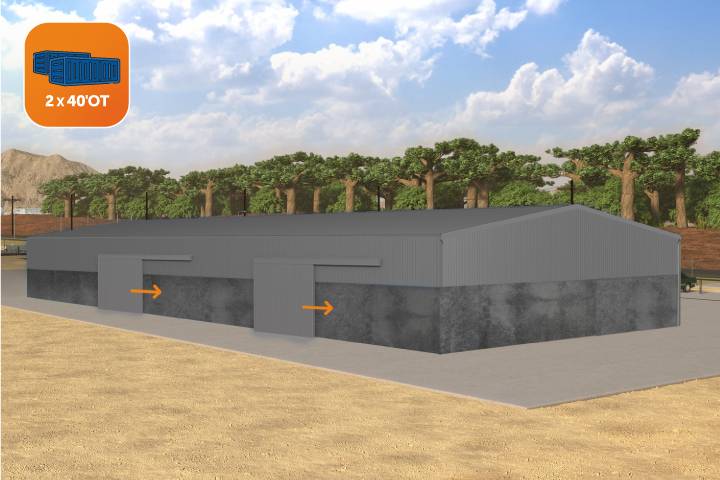

  • Delivery in two 40' open-top containers!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Hot‒dip galvanization of the structure
Covering in 70/100th STEEL lacquered sheets
Covering in lacquered sheet 70/100th ALU
Covering in lacquered sheets 60/100th STEEL
Covering in lacquered sheets 60/100th ALU
Insulated sandwich panel roofing (from 40mm to 120mm thick)
Accessories: closures, notched ridge cap
Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Accessories: corner joints, dripstops, roofing
Lacquered sheet metal cladding 50/100th, 1st choice, profile 5 wide waves, on 4 sides from 3m from the ground, including corner joints
Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included)
Galvanized panels to be welded on the long external sides, high evacuation rate
Skylights
Ventilation grids.
Air extractors.
10 % of translucent sheets in roofing.
10 % of sandwich panels
Service door
Windows
Other options available for the openings, consult us...
