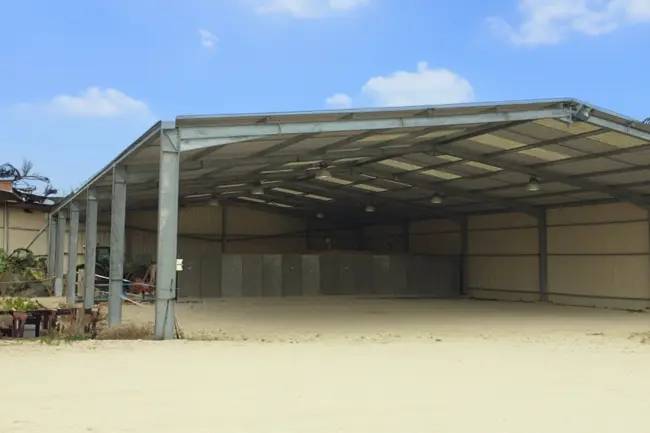

Bâtiment en kit de 900m² vue extérieure
Bâtiment en kit de 900m²

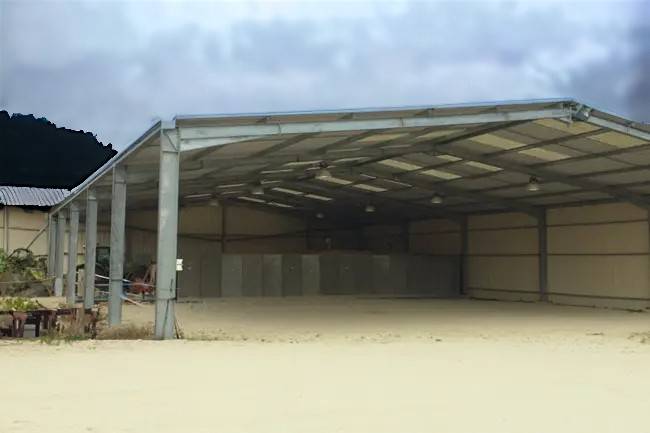

Dimensions d'un bâtiment de 900m² bardé de deux côtés
Bâtiment en kit de 900m² vue extérieure
Bâtiment en kit de 900m²
Dimensions d'un bâtiment de 900m² bardé de deux côtés

Closed kit building 900m²

Request a free quote

Building details

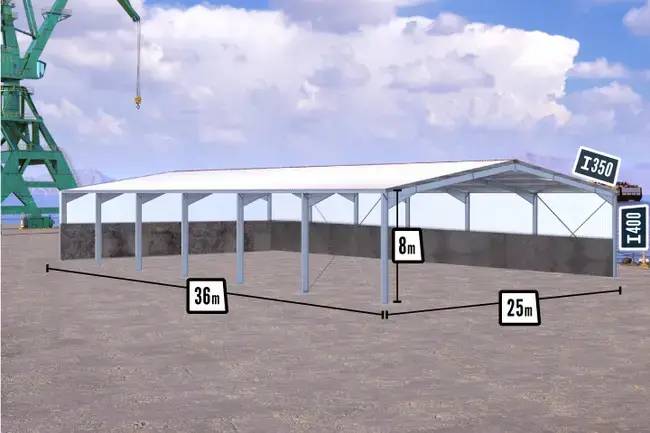

Shape and sizes

Opening : Partially closed
Building area : 900m2
Type of slope : Double slope (8%)
Width : 25m
Length : 36m
Height : 8m
Rafter section : Ⅰ 350mm
Post section : Ⅰ 400mm
Purlins : C160mm galvanized
Weight : 25 365kg

Covering

Type of roofing : 0.50 lacquered sheet metal
Type of cladding : 0.50mm lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1: A height of 8m allowing the installation of an office area with a view on the entire building using metal structure (in option) or using concrete
Specificity 2: Requires only one 40' open top container for transport

Description

Need a 900m² storage warehouse? Take advantage of our partially closed on two sides kit building designed to adapt to your needs in terms of closed storage space. conceived with a generous 8m height allowing you to provide an office area (steel structure in option or concrete) giving you a wide view of the entire interior space. Our experts calculated the building for an easy installation. It will only take one 40' open-top container to be delivered to you.



Our kit-building strengths



Robustness and resistance

  • Structure PRS High Resistance Steel shot-blasted with anti-rust paint
  • Sheet cover 1st choice profile 5 wide waves with 20cm overhangs on the long sides, check our color chart
  • 8m height ideal to create a mezzanine area for offices (optional steel structure or using concrete)
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our steel constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly
  • Delivery in only one 40' open-top container!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Hot‒dip galvanization of the structure
Galvanized interlocking gutters with high evacuation rate & Condensation regulator
Covering in lacquered sheets 70/100th STEEL Covering in lacquered sheet 70/100th ALU Covering in lacquered sheets 60/100th STEEL Covering in lacquered sheets 60/100th ALU Insulated sandwich panel roofing (from 40mm to 120mm thick) Accessories: closures, notched ridge cap Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick) Accessories: corner joints, dripstops, roofing Lacquered sheet metal cladding 50/100th, 1st choice, profile 5 wide waves, on 4 sides from 3m from the ground, including corner joints Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included) Galvanized gutters panels to be welded on the long external sides, high evacuation rate Skylights Ventilation grids. Air extractors. 10 % of translucent sheets in roofing. 10 % of translucent sandwich panels Service door Windows Other options available for the openings, consult us...
