Closed steel shed 5 100m²

Request a free quote

Building details

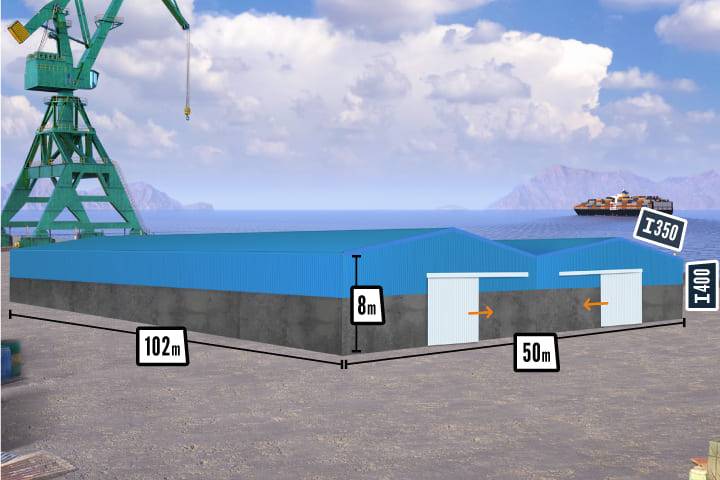

Shape and sizes

Opening : Closed
Building area : 5 100m2
Type of slope : Twin double slope (8%)
Width : 50m
Length : 102m
Height : 8m
Rafter section : Ⅰ 350mm
Post section : Ⅰ 400mm
Purlins : C160mm galvanized
Gutters : Galvanized central gutter with high drainage rate
Weight : 121 785kg

Covering

Type of roofing : 0.50 lacquered sheet metal
Type of cladding : 0.50mm lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1: Large area allowing the installation of a production/processing line and a storage area
Specificity 2: 4 large sliding doors allowing functional management of incoming and outgoing flows

Description

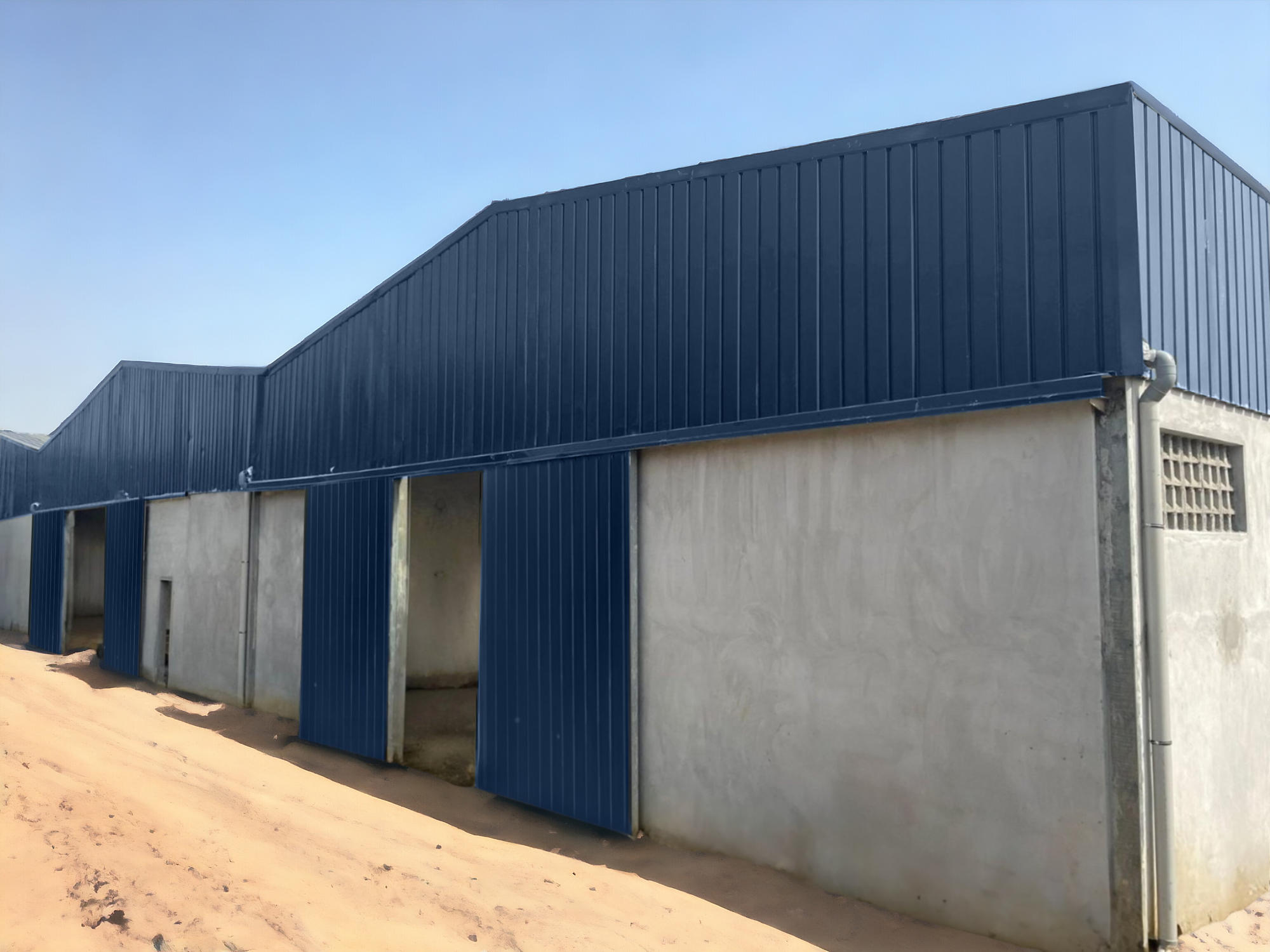

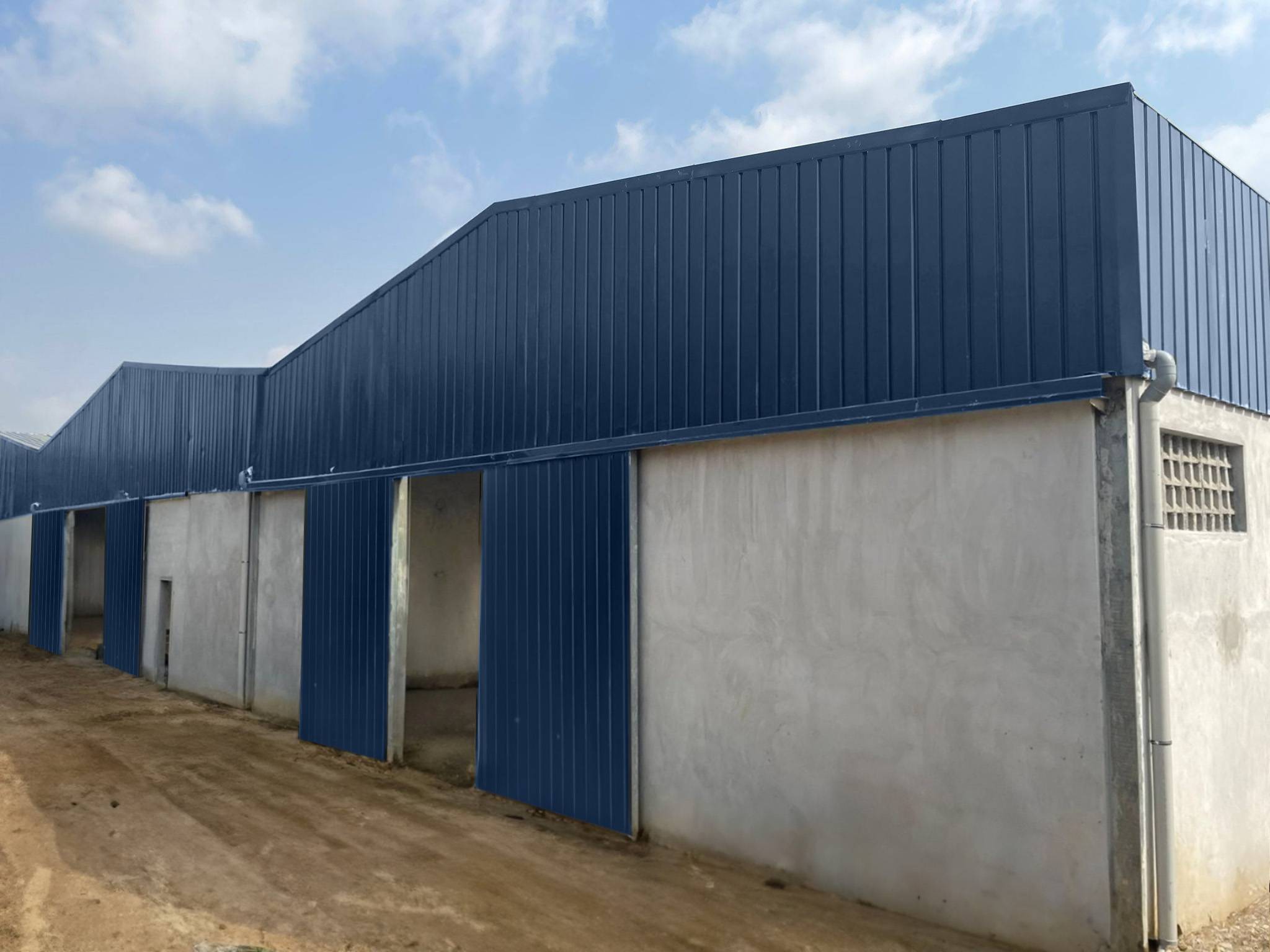

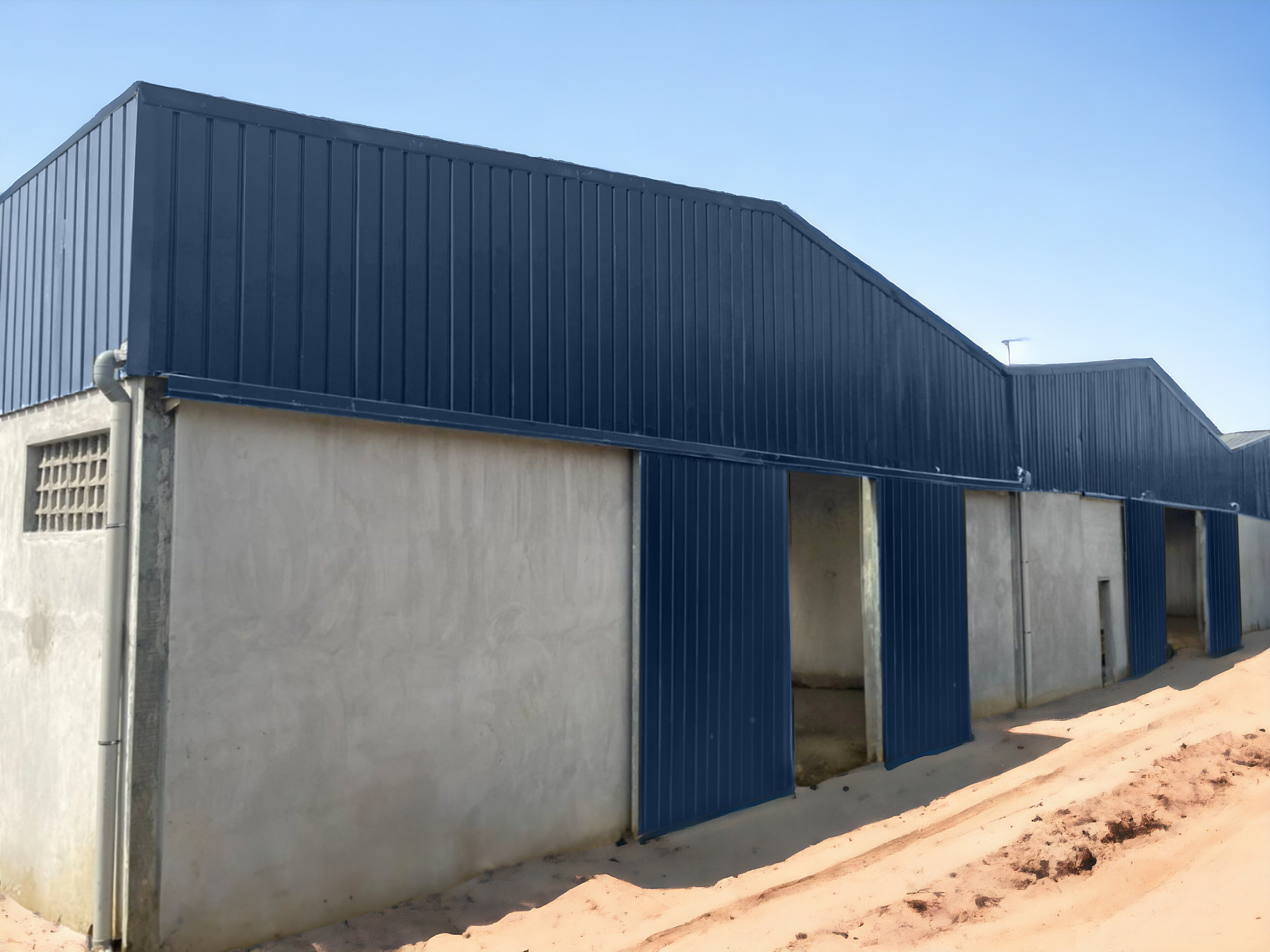

Our 5100m² kit building for the food industry adapts to your specific needs in terms of space. A 5100m² to install a processing line, a production chain, and a generous storage area. This huge still shed is equipped with four sliding doors (5x5m) allowing you an optimal layout of the space and controlled management of incoming/outgoing flows.
Reference: IA4


Our 50x102x8m closed kit-building strengths



Robustness and resistance

  • Structure PRS High Resistance Steel shot-blasted with anti-rust paint
  • Sheet cover & cladding made of 1st choice profile 5 wide waves with 20cm overhangs on the long sides, check our color chart
  • C180mm galvanized purlins for more resistance
  • 4m canopy to set up a covered area dedicated to logistical operations.
  • Starting height of sheet metal cladding: 3m from ground level
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our metal constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just 2 years
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • More than 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market


Simple delivery and assembly

  • Kit building supplied with its installation plans for straightforward assembly
  • Delivery in only one 40' open-top container!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Hot‒dip galvanization of the structure
Partitioning possible to split the building into 2 parts for several activities (packaging + storage/processing + shipping)
Steel or Alu Covering in laquered sheets in 60/100ht or 70/100th thickness
Insulated sandwich panel roofing (from 40mm to 120mm thick) Accessories: closures, notched ridge cap
10 % of translucent sheets in roofing
10 % of translucent sandwich panels
Skylights
Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Lacquered sheet metal cladding 50/100th, 1st choice, profile 5 wide waves, on 4 sides from 3m from the ground, including corner joints
Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included)
Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Galvanized gutters panels to be welded on the long external sides, high evacuation rate
Ventilation grids
Accessories: corner joints, dripstops, roofing
Air extractors.
Service door Windows
Other options available for the openings, consult us...
Download the quality sheet
ESTIMATE YOUR PROJECT

Let our experts help you

My free detailed quote

The best quality/price ratio on the market

More than 3,000 transactions each year

References in more than 50 countries

More than 500,000m² sold in 2020
