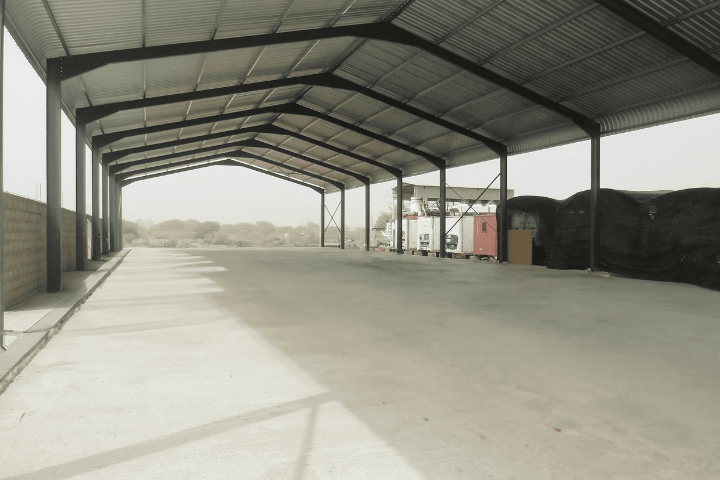

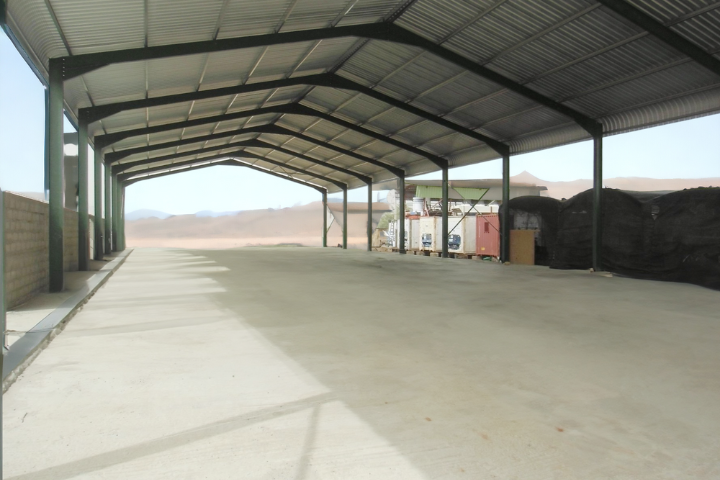

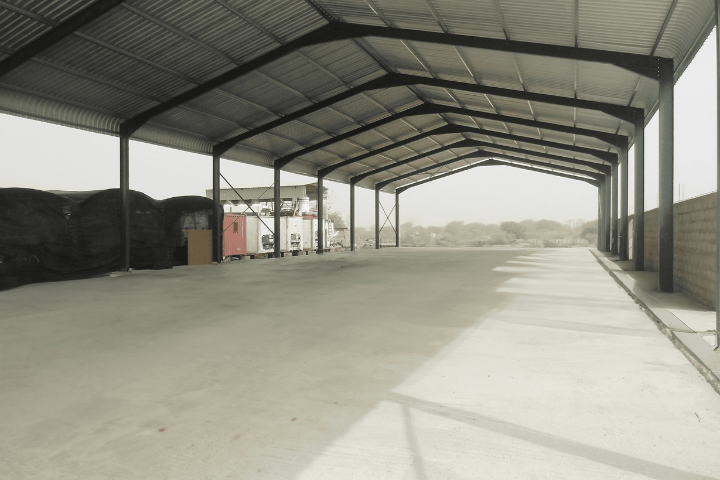

Magasin de stockage ouvert de 1236m²
Dimensions d'un magasin de stockage en kit pour le stockage
Magasin de stockage ouvert de 1236m²
Dimensions d'un magasin de stockage en kit pour le stockage

Open kit building 1 236m²

Request a free quote

Building details

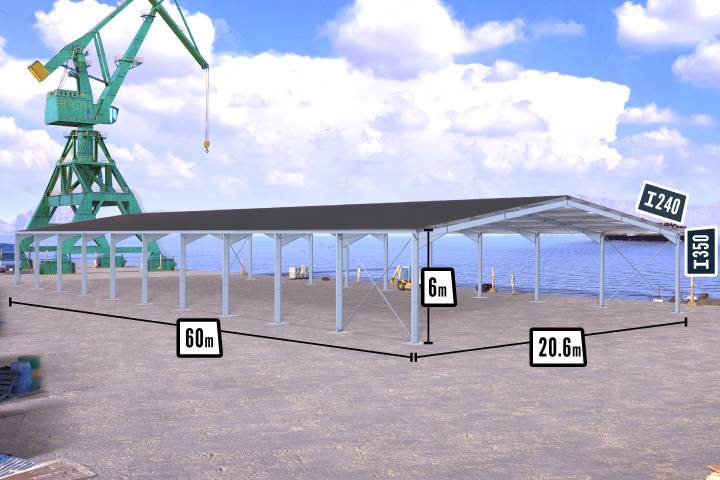

Shape and sizes

Building area : 1,236.00m2
Type of slope : Double slope (8%)
Width : 20.6m
Length : 60m
Height: 6m
Rafter section : Ⅰ 240mm
Post section : Ⅰ 350mm
Purlins : C160mm galvanized

Covering

Type of roofing : 0.50 lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Easy assembly & easily handled elements (weight/span), perfectly possible using traditional lifting tool/technique
Spécificité 2 : Requires only one 40' open top container for transport

Description

Take advantage of our open kit building designed to meet the needs of your activity in terms of storage. Its surface area of ​​1,236m² offers an ideal space to set up your warehouse and strengthen your storage capacity. Our kit building is calculated to guarantee an easy assembly and will only require one 40’ open-top container to be delivered to you.
Reference: MDS1


Our kit-building strengths



Robustness and resistance

  • Structure
  • PRS High Resistance Steel
  • Sheet cover 1st choice profile 5 wide waves (color blue RAL 5015, white RAL 9003 or gray RAL 7043 or aluminum gray RAL 9006)
  • Height of 8m ideal for storage
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our metal constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • Your building is insurable and eligible for cover in the event of a claim, provided that it is installed according to the rules.
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly
  • Delivery in only one 40' open-top container!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Covering in 70/100th STEEL lacquered sheets
Covering in lacquered sheet 70/100th ALU
Covering in lacquered sheets 60/100th STEEL
Covering in lacquered sheets 60/100th ALU
Insulated sandwich panel roofing (from 40mm to 120mm thick)
Accessories: closures, notched ridge cap
Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Accessories: corner joints, dripstops, roofing
Lacquered sheet metal cladding 50/100th, 1st choice, profile 5 wide waves, on 4 sides from 3m from the ground, including corner joints
Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included)
Galvanized panels to be welded on the long external sides, high evacuation rate
Skylights
Ventilation grids.
Air extractors.
10 % of translucent sheets in roofing.
10 % of sandwich panels
Service door
Windows
Other options available for the openings, consult us...
