10%
10%

Open kit Building 2 400m²

Request a free quote

Building details

Shape and sizes

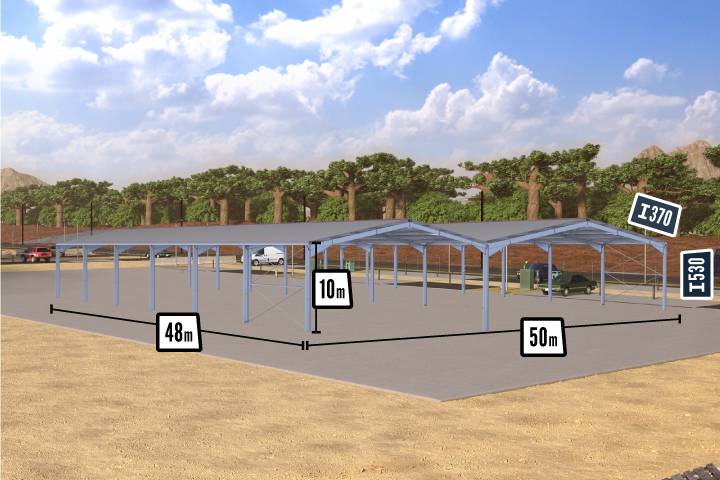

Building area : 2,400.00m2
Type of slope : Twin double slope (8%)
Width : 50m
Length : 48m
Height: 10m
Rafter section : Ⅰ 370mm
Post section : Ⅰ 530mm
Purlins : C 200 mm galvanisées
Gutters : Galvanized central gutter with high drainage rate
Weight: 47,950.00kg

Covering

Type of roofing : 0.50 lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Large area and well-balanced dimensions (almost identical width and length) making the building easy to set up on most lands
Spécificité 2 : Significant height of 10m at the bottom of the slope allowing you to install almost all production machines
Specificity 3 : Building designed in 8m span allowing you to reduce budget allowance for the foundations, and large passages of 8m on the 2 long sides

Description

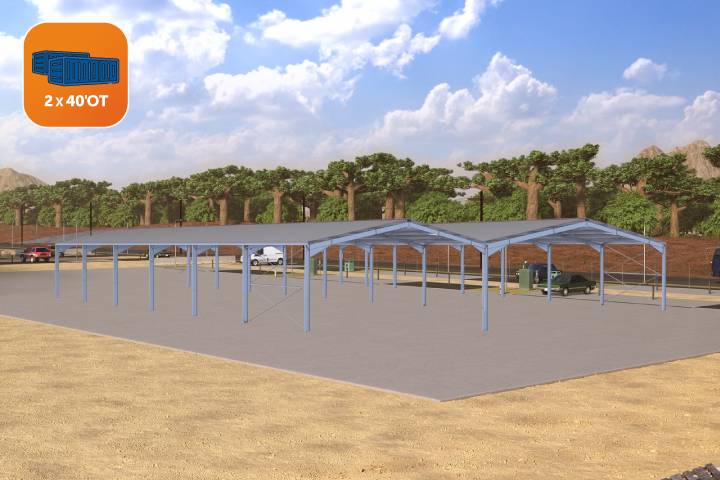

Need to cover a wide area at a lower cost? Our tow adjoining bi-slope 2400m² steel shed, is made for you: this technique makes it possible to shelter a large surface at the most economical cost. The building has large openings (8m long between two posts) for optimal circulation of your machines and goods. The other advantage is the 10m height at the bottom of the slope which is ideal for the storage or installation of large industrial machines. Take advantage of a huge steel shed that will only require two 40' open-top containers to be delivered to you.
Reference: AUI3



Strengths

Robustness and resistance

  • Structure PRS High Resistance Steel
  • Sheet cover 1st choice profile 5 wide waves with 20cm overhangs on the long sides, check our color chart
  • Height of 8m ideal for installing an office area (optional structure or concrete built)
  • C200mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our steel constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • Your building is insurable and eligible for cover in the event of a claim, provided that it is installed according to the rules.
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly
  • Delivery in two 40' open-top containers!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Covering in 70/100th STEEL lacquered sheets
Covering in lacquered sheet 70/100th ALU
Covering in lacquered sheets 60/100th STEEL
Covering in lacquered sheets 60/100th ALU
Insulated sandwich panel roofing (from 40mm to 120mm thick)
Accessories: closures, notched ridge cap
Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Accessories: corner joints, dripstops, roofing
Lacquered sheet metal cladding 50/100th, 1st choice, profile 5 wide waves, on 4 sides from 3m from the ground, including corner joints
Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included)
Galvanized panels to be welded on the long external sides, high evacuation rate
Skylights
Ventilation grids.
Air extractors.
10 % of translucent sheets in roofing.
10 % of sandwich panels
Service door
Windows
Other options available for the openings, consult us...
