Open kit building 3 420m²

Request a free quote

Building details

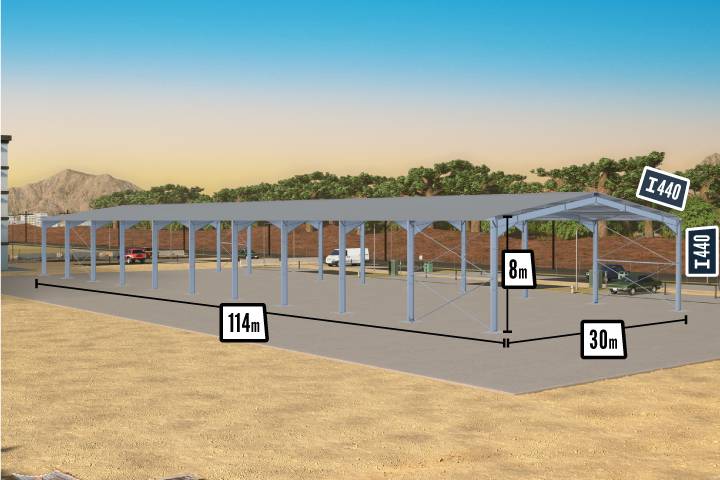

Shape and sizes

Opening : Openned
Building area : 3 420m2
Type of slope : Double slope (8%)
Width : 30m
Length : 114m
Height: 8m
Rafter section : Ⅰ 440mm
Post section : Ⅰ 440mm
Purlins : C160mm galvanized
Weight: 74 650kg

Covering

Type of roofing : 0.50 lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Large width without any posts inside the building allowing easy layout

Description

Need an open space for your activity in the agri-food industry? Take advantage of our 3420m² kit building, designed without any poles inside, allowing you to arrange the space according to your specific needs in terms of storage, preservation, processing, or production space for the agri-food sector. Available in stock, at the best value for money on the market


Our kit-building strengths



Robustness and resistance

  • Structure PRS High Resistance Steel
  • Sheet cover 1st choice profile 5 wide waves with 20cm overhangs on the long sides, check our color chart
  • (color blue RAL 5015, white RAL 9003 or gray RAL 7043 or aluminum gray RAL 9006)
  • 8m height ideal to create a mezzanine area for offices (optional steel structure or using concrete)
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our steel constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market

Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly
  • Delivery in three 40' open-top container!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Covering in 70/100th STEEL lacquered sheets
Covering in lacquered sheet 70/100th ALU
Covering in lacquered sheets 60/100th STEEL
Covering in lacquered sheets 60/100th ALU
Insulated sandwich panel roofing (from 40mm to 120mm thick)
10 % of translucent sheets in roofing
10 % of sandwich panels
Skylights Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick)
Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included)
Galvanized gutters to be welded on the long external sides, high evacuation rate
Accessories: closures, notched ridge cap
Ventilation grids
Air extractors
Service door
Windows
Other options available for the openings, consult us...
