Open kit building 990

Request a free quote

Building details

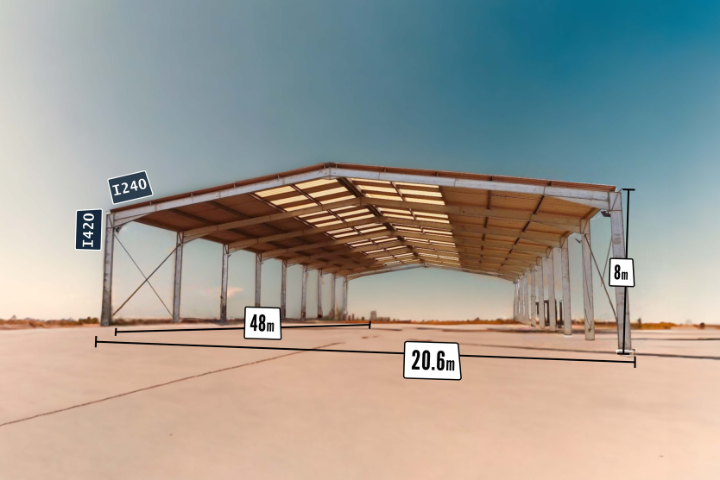

Shape and sizes

Building area : 988.80m2
Type of slope : Double slope (8%)
Width : 20.6m
Length : 48m
Height: 8m
Rafter section : Ⅰ 240mm
Post section : Ⅰ 420mm
Purlins : C160mm galvanized

Covering

Type of roofing : 0.50 lacquered sheet metal
Ridge : Flat & large
Side Bracing : Included
Bolts and fasteners : Included

Specificities

Specificity 1 : Nearly 1,000m² allows you to comfortably store your agri-food products on pallets or install a processing unit.
Spécificité 2 : Requires only one 40' open top container for transport
Specificity 3 : Easy assembly regarding its weight and span

Description

This double slope kit building is calculated to meet the needs of your agri-food business in terms of storage space. An area of ​​988.8m² is ideal to set up a processing unit, a production line, or strengthen your storage capacity. Designed for easy assembly, this building will only require one 40' open-top container to be delivered to you.



Strengths of our 20.6x48x8M open kit building

Robustness and resistance

  • Structure PRS High Resistance Steel
  • Sheet cover 1st choice profile 5 wide waves (color blue RAL 5015, white RAL 9003 or gray RAL 7043 or aluminum gray RAL 9006)
  • Height of 8m ideal for storage
  • C160mm galvanized purlins for more resistance
  • Manufactured according to french standards with CE marking of the frame according to EN1090, Design, and Conception made in Luxembourg
  • High quality and low price characterize our steel constructions. For your agri-food business, take advantage of a solid and resistant shed to secure your goods and materials from weather conditions for very long years.

A long-term investment

  • A robust building, financially more advantageous than renting, its cost is amortized in just two years
  • Your building is insurable and eligible for cover in the event of a claim, provided that it is installed according to the rules.
  • A high-quality sustainable building calculated by our experts in our internal design office


We guarantee you

  • Buildings with the best quality/price ratio on the market thanks to reduced margins as much as possible
  • The guarantee of receiving your building anywhere in Africa at the port of your choice thanks to our efficient logistics organization
  • Support throughout your project: before, during, and after the installation of your building
  • After-sales customer support at your service
  • 20 years of expertise and hundreds of customers testify that our prices are the most competitive on the market



Simple delivery and assembly

  • Kit building supplied with installation plans for straightforward assembly
  • Delivery in only one 40' open-top container!

This building at the displayed price is planned for an installation zone in WIND 1, regular exposure, calculated without snow. The prices indicated exclude taxes and exclude the cost of transport which will be communicated to you by our team of commercial experts. An illustrative photo is not contractual.

Available options

Cladding
Hot
dip galvanizing
High flow evacuation gutters
Condensation controller
Covering in lacquered sheets 70/100th STEEL Covering in lacquered sheet 70/100th ALU Covering in lacquered sheets 60/100th STEEL Covering in lacquered sheets 60/100th ALU Insulated sandwich panel roofing (from 40mm to 120mm thick) Accessories: closures, notched ridge cap Insulated sandwich panel cladding up to the ground or from a certain level of the ground (from 40mm to 120mm thick) Accessories: corner joints, dripstops, roofing Lacquered sheet metal cladding 50/100th, 1st choice, profile 5 wide waves, on 4 sides from 3m from the ground, including corner joints Cladding in lacquered sheet metal 50/100th, 1st choice, profile 5 wide waves, on all 4 sides up to the ground or from a certain level of the ground (corner joints included) Galvanized gutters panels to be welded on the long external sides, high evacuation rate Skylights Ventilation grids. Air extractors. 10 % of translucent sheets in roofing. 10 % of translucent sandwich panels Service door Windows Other options available for the openings, consult us...
